Programed 4 Barrel Boosted Fuel Injection
system with Crank Trigger Ignition.
(NO MANIFOLD)
Want to Compare our Kits to Jegs, Summit or Fitech? Click Here!!
Check out kit 1A to support your new fuel injection kit. Includes locked-out billet distributor, hp coil, ceramic wires and correct resistor ngk plugs. Click Here
Check out all the builds on Instagram @lowbugget_vw
Check out this YouTube video using our programed 4-Barrel injection system!
Features:
- Data Logger can keep over 25 logs
- One Button Log on/off feature with Auto off.
- Blow-through or Draw-Through VW Turbo use.
- Built in Nitrous controls.
- Boost and Nitrous timing control.
- Inlet air temp ignition Retard
- Full Ignition timing control with awesome throttle response.
- Ignition start retard.
- Can be upgraded to 2x Port or 4x Port injection and also sequential 4x Port.
- Idle Stability Control (smooths out idle on large pipe or long runner combos, helps prevent stalling)
- Anti-Lag Turbo Control for staging boost building at the line. Pop, pop, pop!!!
- Hidden Crank Trigger ignition signal input Included. (hides behind pulley now)

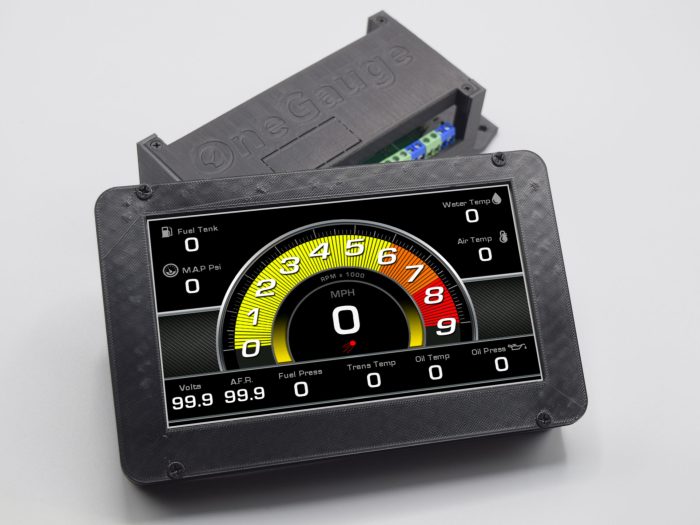

- Hand Held Gauge Displays: Oil temp, Inlet Air Temp, Volts, AFR, Boost, RPM and More.
- 2x Rev-Limiters with adjustable Bounce-Back Soft Touch.
- OBD code readout for all sensors on hand held.
- Real-Time Air/Fuel Ratio display.
- Real-Time Ignition timing display. Basically you can watch your ignition timing from inside the car!
- Pro-tuning laptop software Included but not needed to make adjustments or read logs.
- 2.5 BAR internal MAP sensor.
- Suitable for up to 550hp.
- (4) Flow matched 550hp injectors.
- (2) Fan on/off control with temp adjustments.
- Support for Nitrous.
- Boost and Nitrous timing.
- Full standard Ignition timing control.
- Built-in fuel pressure regulator with 1:1 boosted referenced up to 30psi use.
- Matte black finish.
Kit Contents
- (1) VW Programed Throttle body and handheld to match your combo and needs.
- (1) Weld-in O2 bung.
- (1) Hand-held controller with Boosted VW program for your combo.
- (1) Oil Temp sensor and mount. (stock fuel pump block-off mount or Type 3 dipstick block-off mount)
- (1) 16 foot or 21 foot handheld controller cable.
- (1) Windshield handheld display mount.
- (1) Mini USB cable to read Data Logs.
- (1) 600hp frame-mounted inline fuel pump with mount.
- (1) O2 sensor.
- (1) Gasket kit.
- (1) High-Flow air cleaner with chrome top.
- (6) -6 Push-Loc AN fittings 1x straight, 2x 45*, 2x90*, 1x180*
- (20) Feet -6 Push-Loc 3/8" e85 safe fuel hose.
- (6) Hose clamps
- (1) Chrome Throttle Cable Mount with 2x return springs.
- (1) Heim-joint throttle linkage adapter.
- (1) Base gasket, air-top gasket
- (1) Relay/fuse box with Fuel pump and Injector Relays externally mounted along with fuses.
- (1) main power/fuel pump power CABLE, (1) coil, key power, fan #1, Tach CABLE (1) Fan #2, NOS input, NOS output, Rev-limiter #2, anti-lag CABLE
- Unlimited Tech Help not in the box but just a phone call away at 714-639-4284
