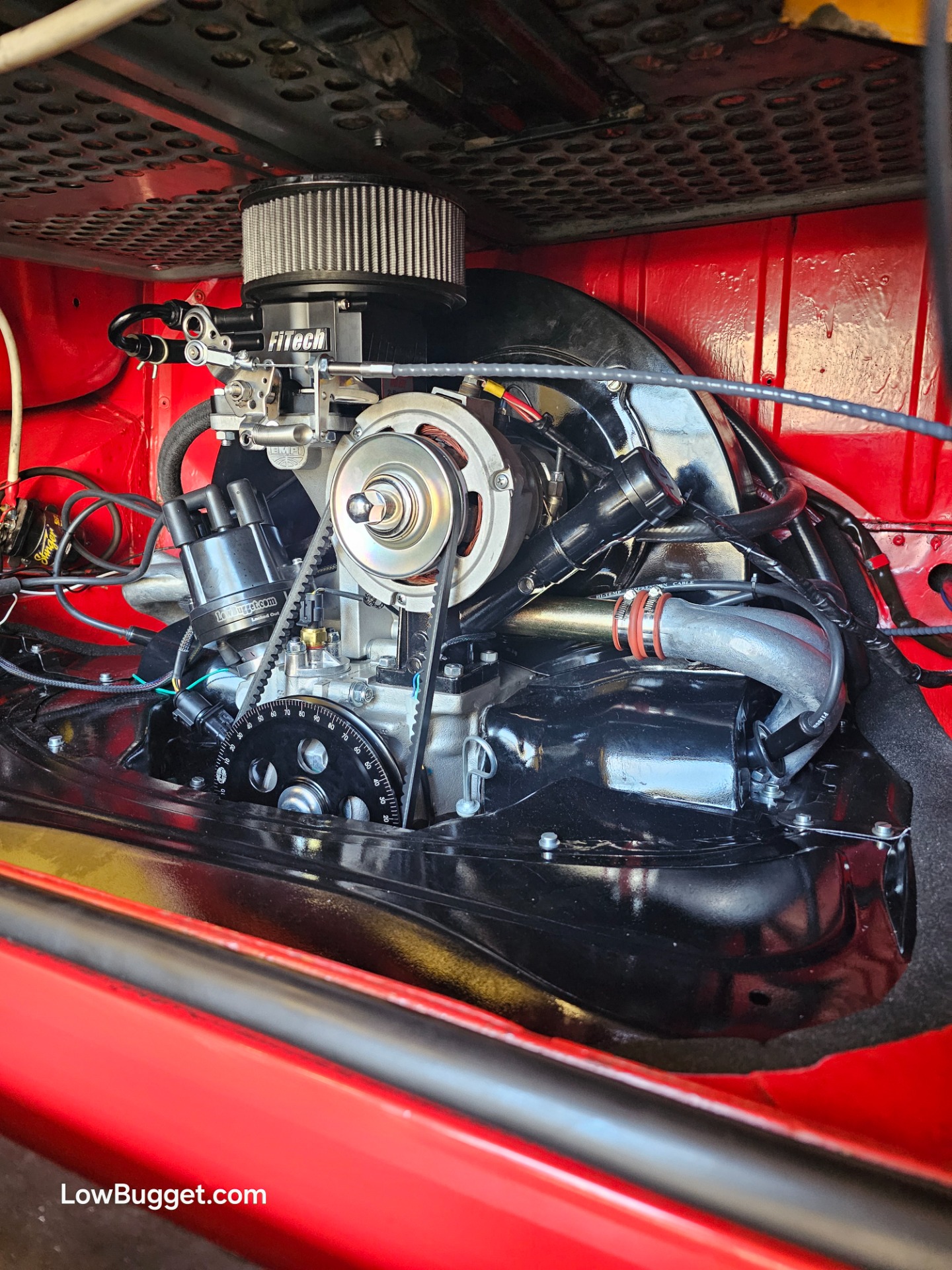

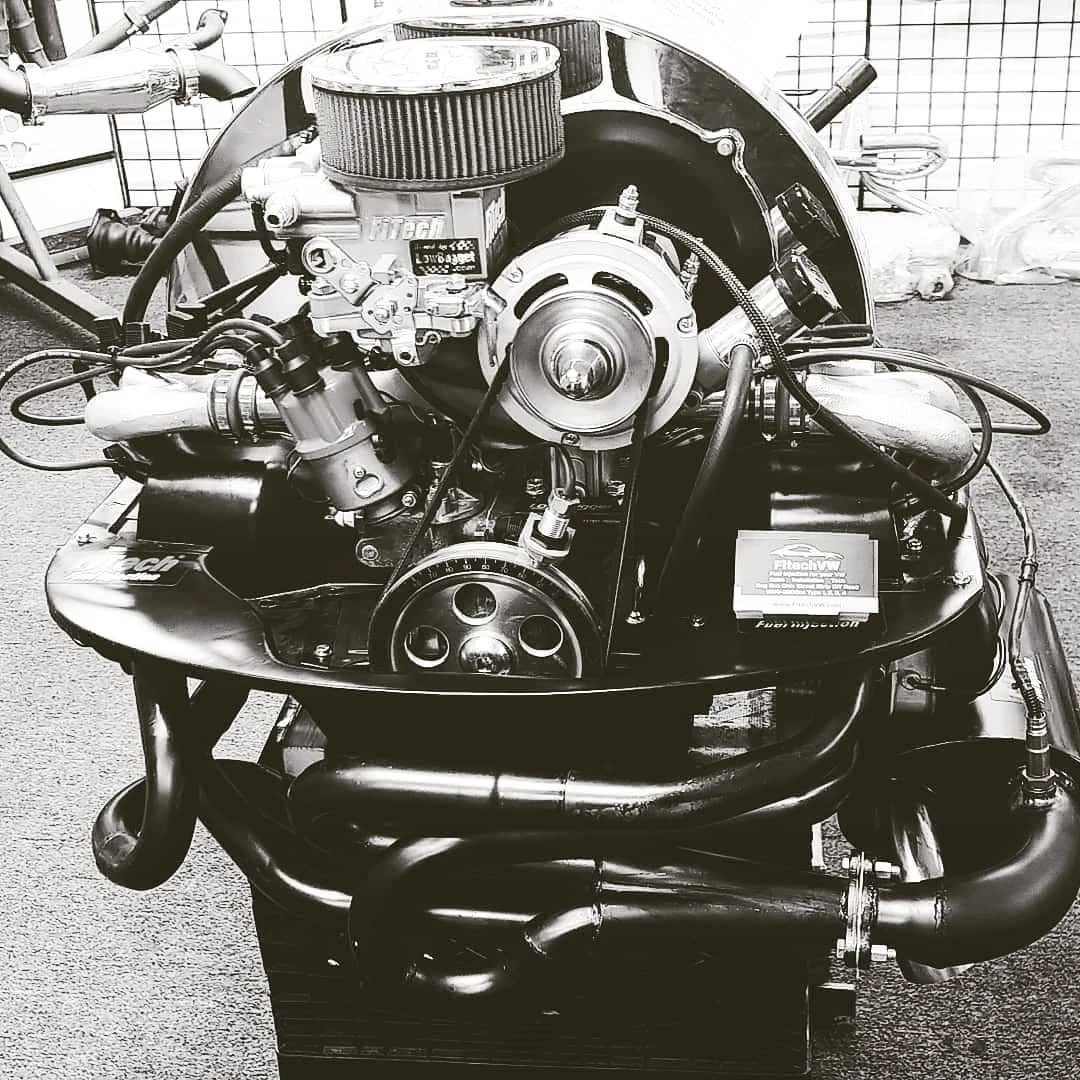

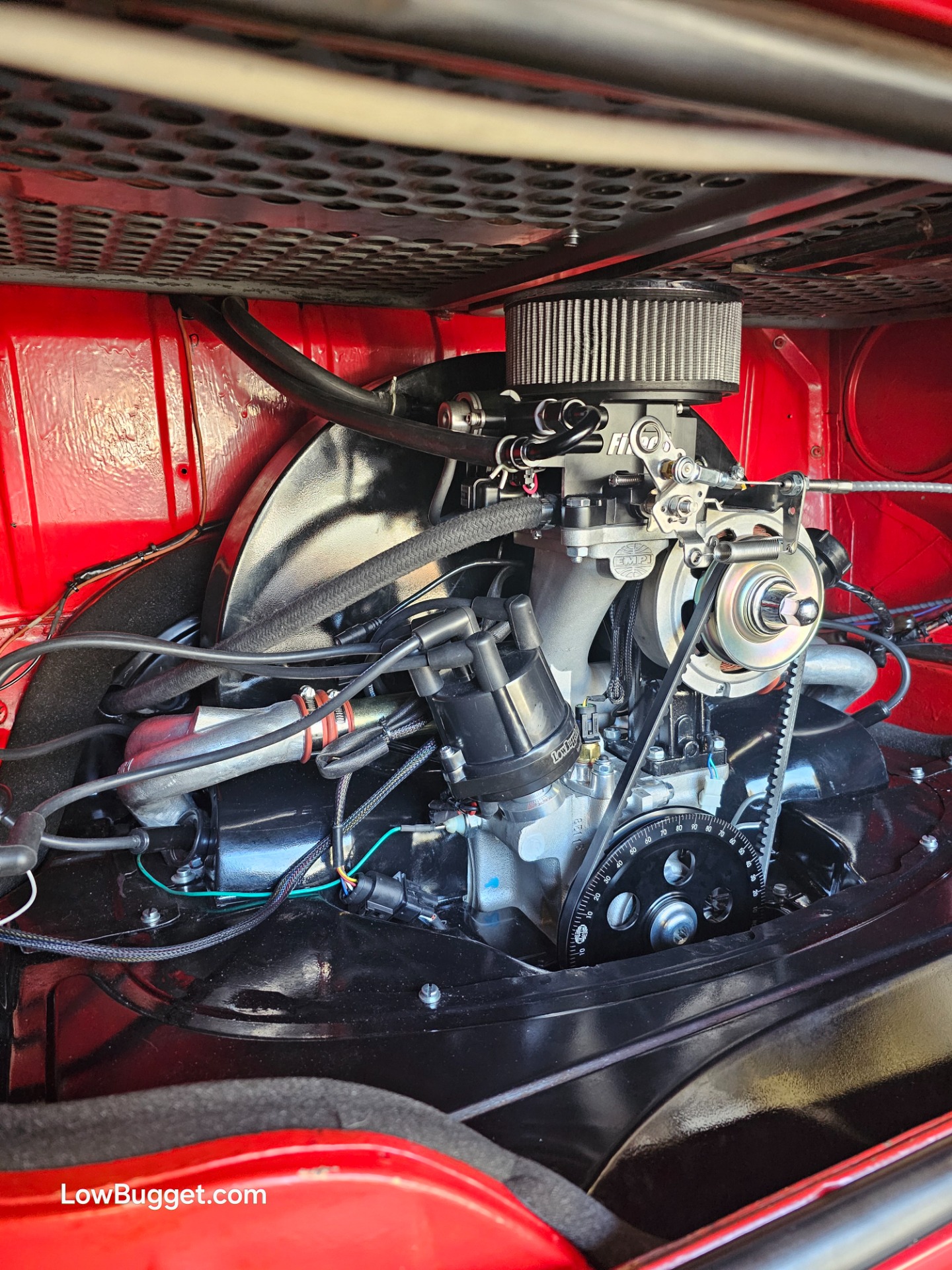

100% NEW 2180cc TURNKEY
Perfect for Your Bus!
Add one of our turbo systems to your order, Click Here
Check out us balancing a crank for one of our turn key builds. Click Here

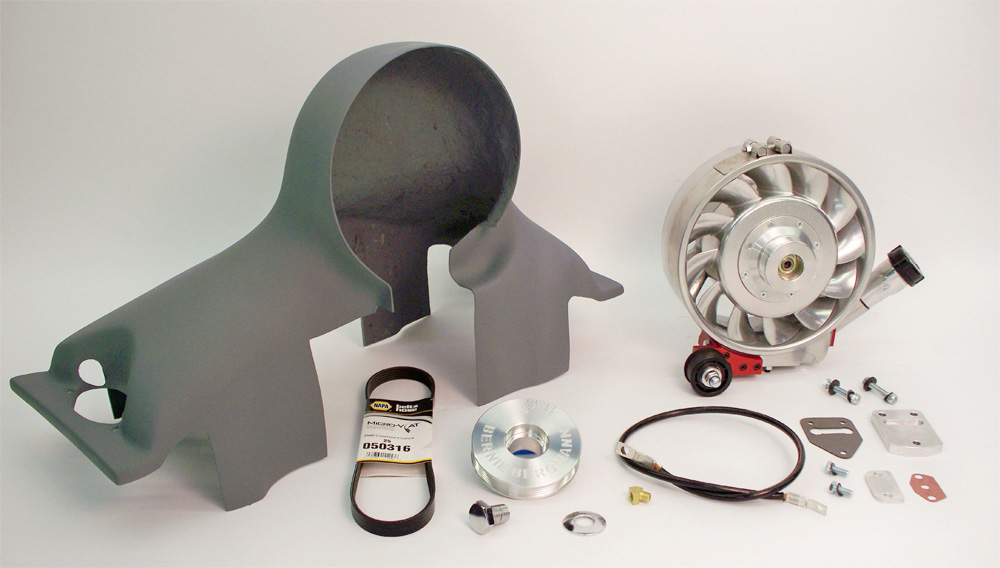

Add a 911 fan shroud to your order! We will fit it, paint it and reinstall all together to give your engine that "WOW" when you open your deck lid! Pick from these High Gloss automotive finishes, Gloss Black, Gloss Red, Gloss Silver or we can leave it primer for you to paint. Click Here for more info.
Add/Replace with Dual 36mm or 40mm throttle body injection. Click Here
100% NEW, Not a few new parts.... 100% NEW!!!
All combos are made to order for you!!!
This means we make the perfect engine for you and your needs!
You have a lot of options, and we have a lot of answers, so give us a call.
Built to last and drive daily "hard"!

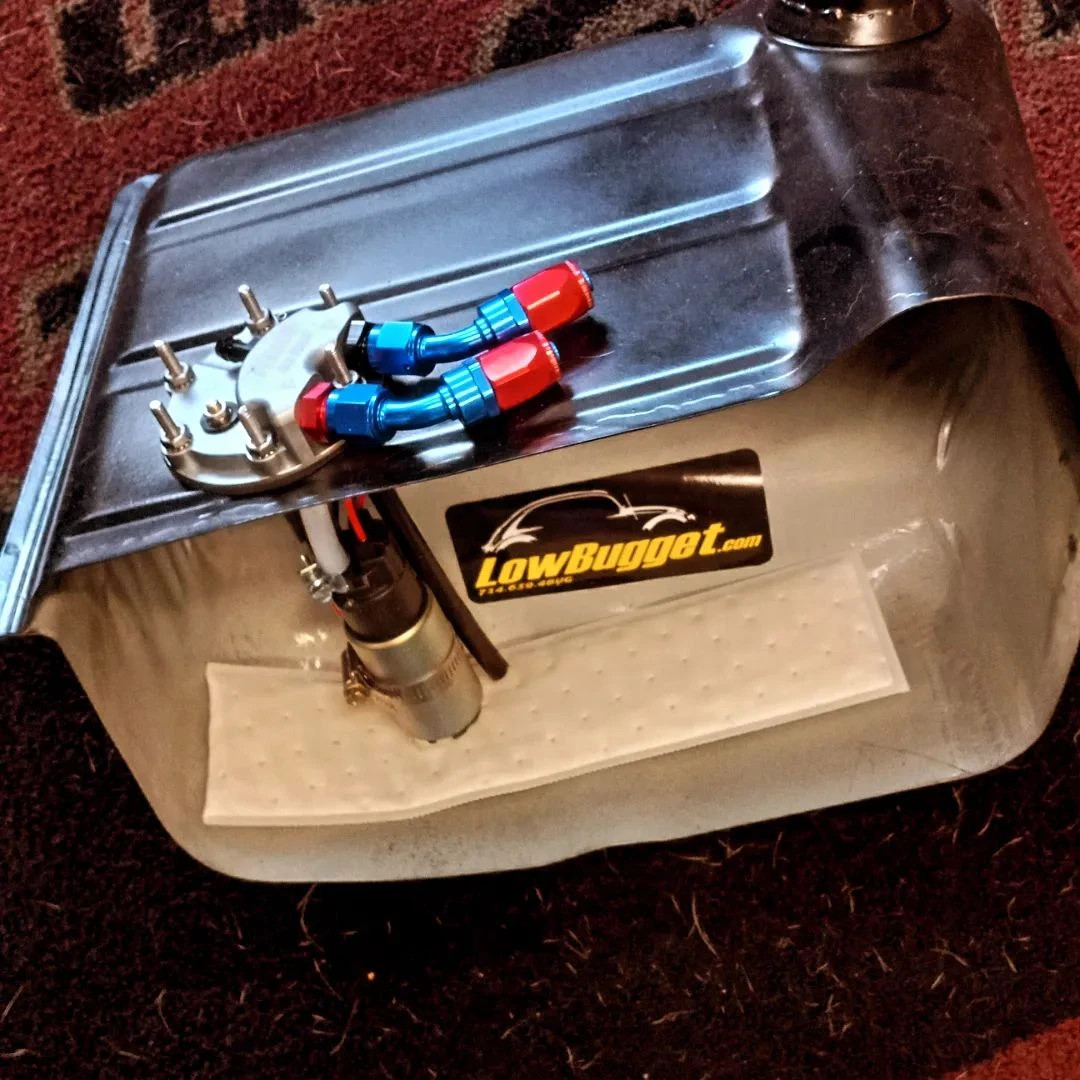

Add In-Tank fuel pump to your order. click here Engine comes with standard in-line fuel pump.

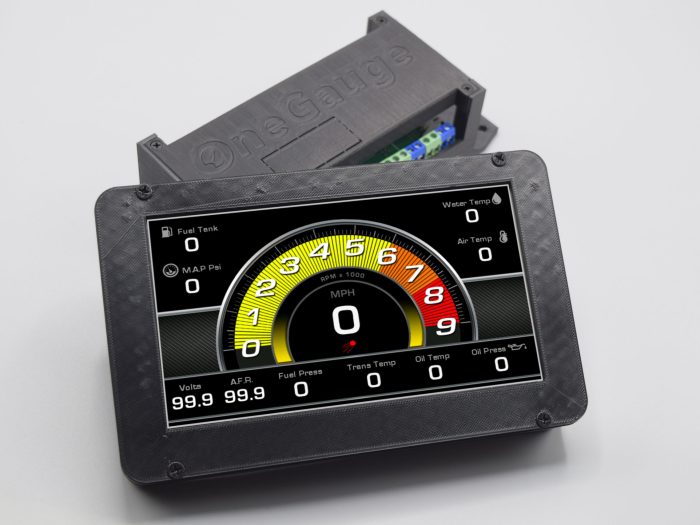

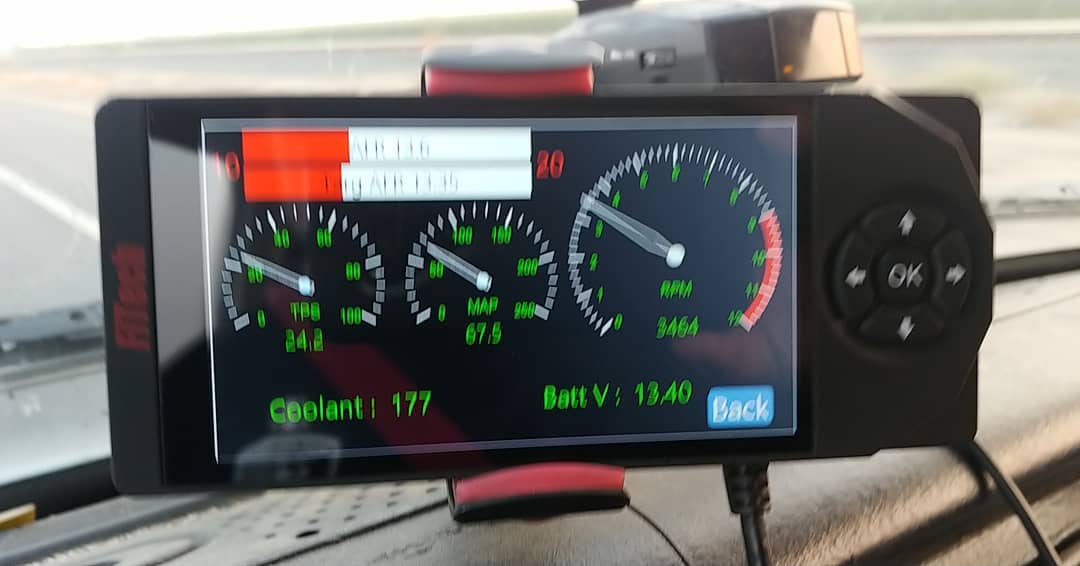

Add LCD 7" screen display too your Lowbugget fuel injection system. Click Here for more info. Engine order comes with standard smaller handheld display.
Check out our 72 Plate Oil Cooler with 1,000cfm fan, that includes filter mount, and Thermostat By-Pass. Click here to add to your engine order.
We start with:
ENGINE CASE- AutoLinea-H.D. "Bubble Top" Engine Case Aluminum, Spot Faced for 15mm washer.
CRANKSHAFT- 4340 82mm Stroke Balanced in house.
RODS- 4130 I-Beam with 3/8" ARP 8740 bolts, Rod Bolt stretch setting to .0055"
CAMSHAFT- LBC1 Torquer Cam for our drivers, can change for more rpm power combos.
LIFTERS- Precision Ground and Heat Treated, Engle 28mm with EDM hole.
FLYWHEEL- Stock weight OG German 8Pin, 200mm for crankshaft sabuilty.
GLAND NUT- 36mm Chromoly 4130, Heavy Duty set at 500lbs.
MAIN BEARINGS- STD Mahle, polished.
ROD BEARINGS- STD Mahle, Sized, polished.
CAM BEARINGS- STD Mahle, Sized.
OIL PUMP- Schadek, 30mm Full-Flow, with Billet Full-Flow Cover (out port)
HEAD STUDS- Chromoly, 10mm 180,000psi, Overkill but that's a good thing!
PISTONS & CYLINDERS- Thick-Wall forged, 92mm
PUSHROD TUBES- USA LowBugget MAX-SEAL tubes.
HEADS- 40mm Intake x 35.5mm Exhaust S/S Valves, Single Hi-Rev Valve Springs, Chromoly Retainers, 3 Angle Valve Job, Chased CC Volume.
PUSHRODS- USA Made Manton 3/8" Diameter.
ROCKERS- LowBugGet PRO-Rockers chromoly 1.25:1 Ratio rockers with 3/4" large shafts.
VALVE COVER- Race-Trim Thick-Cast with AN -8 fittings welded on.
GASKETS- Elring
Lot more, just ask!
List of external parts on our turnkey engine combos:
Billet pulley, you pick the color. Red, Blue or Black
Speed Pulley, To help with keeping our engines cool we like to use our Speed Pulley that is 25% smaller and spins the fan faster, help keep that new low rpm combo cool!
Black standard Fan Shroud and Cylinder Covers all 100% new!
LowBugget.com TwoBarrel fuel Injection system complete with fuel pump, fuel lines, fittings, cable mount, throttle cable, extra long data cable and more! Basically everything you need to complete the install. Can replace with our dual 36 or 40mm IDF injection kit also.
LowBugGet Billet Black Distributor from kit 1A
NGK spark plugs
Fitech Ceramic (Black) performance long lasting wires.

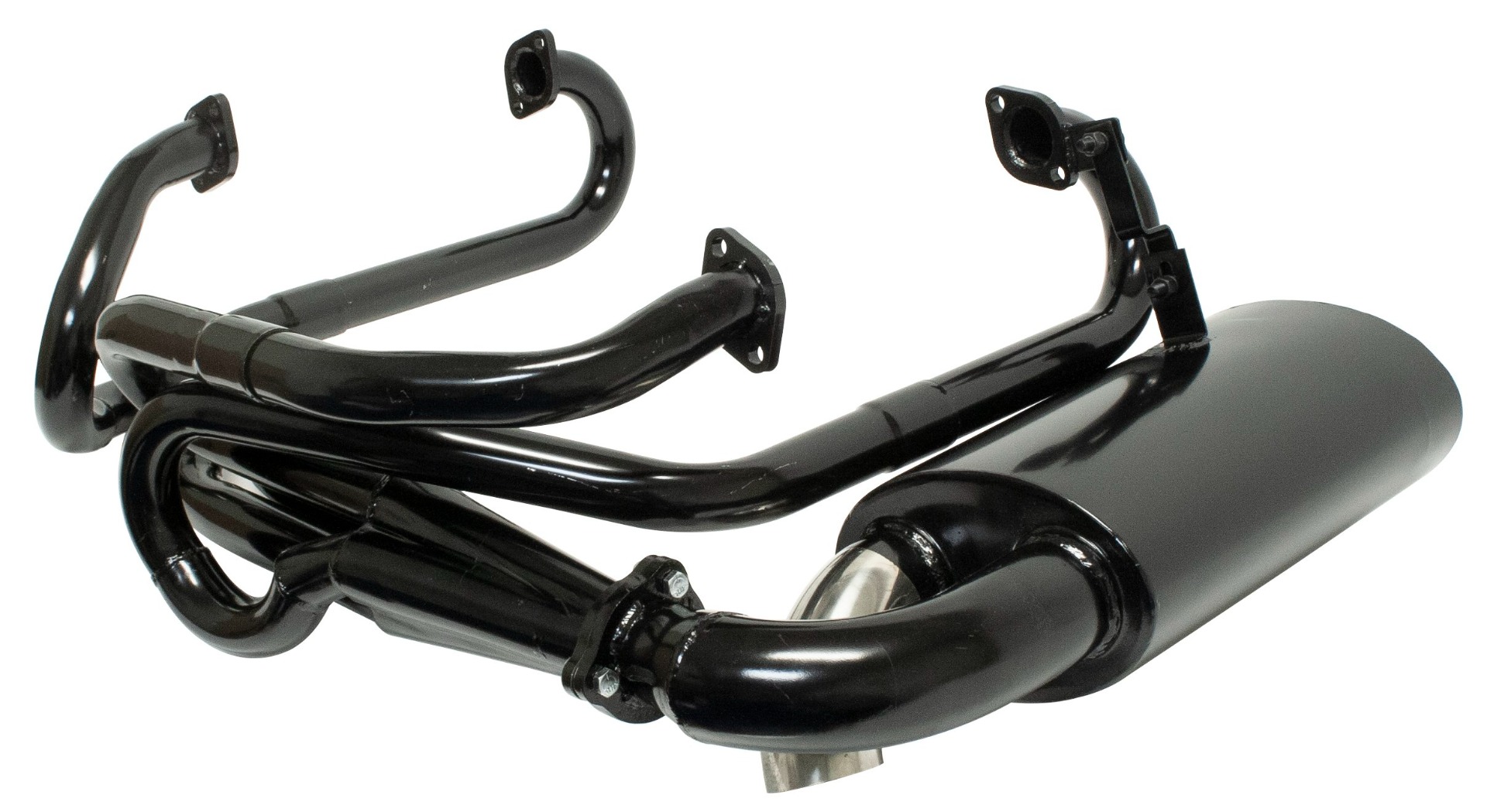

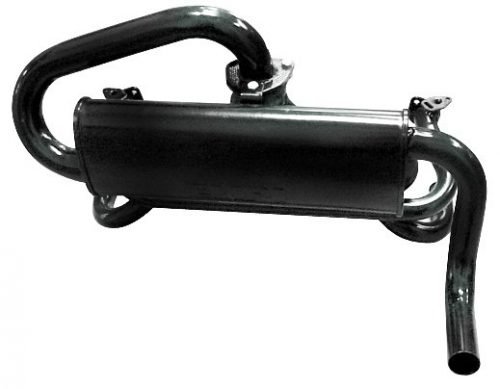

Take your pick on the exhaust, Street Hide-A-way or Offroad.
High out-put 60amp Alternator
KEP Stage 1 pressure plate and HP street disc.
This is a complete Engine. Just add oil and your on your way!!
2180cc with single throttle body makes around 110-125hp and 140-155tq. The Dual 40mm makes around 145-165hp and 140-160tq. These combos are built for torque, not a race combos at all. Great for VW Bus, Bug, Ghia, Thing. Built for longevity and massive low-end power. We can build you a diffrent style combo for more rpm power if you like. Please call for that.
More options and more info! Give us a call at shop, we like to talk tech!!
714-639-4284 M-F 9-6 and Sat 10-3
