72 Plate MAX Oil Cooler with 10" 1,000cfm Fan.
Most all other shops will send there oil cooler kits with the smaller 8" or 9" fans. These fans only put
out around 500 to 700CFM. All of our oil cooler kits come with the larger 10" fan that blows a
whopping 1,000CFM!!! That's a lot more air moving past the cooler! All this from a 80watt (6.6amp) motor.
(85hp to 150hp) For larger, more HP combos check out our 96 Plate Kits
Good for Bugs, Ghia, Thing, Off Road/Baja etc. For VW Bus i recommend checking out our 96 Plate as the overall length lines up with the factory frame rails under the
Check out our oil filter bumper mount to make the install a breeze!

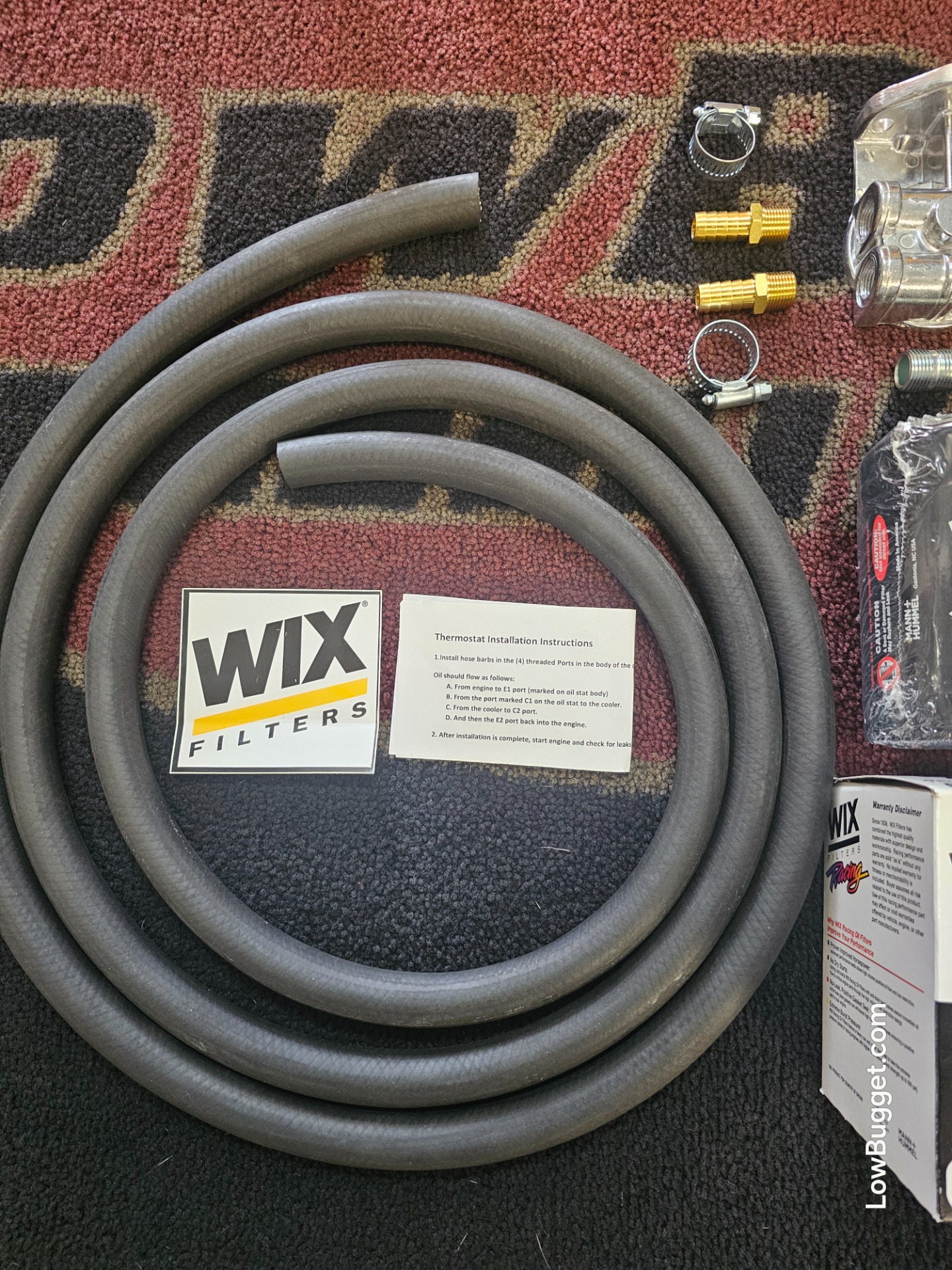

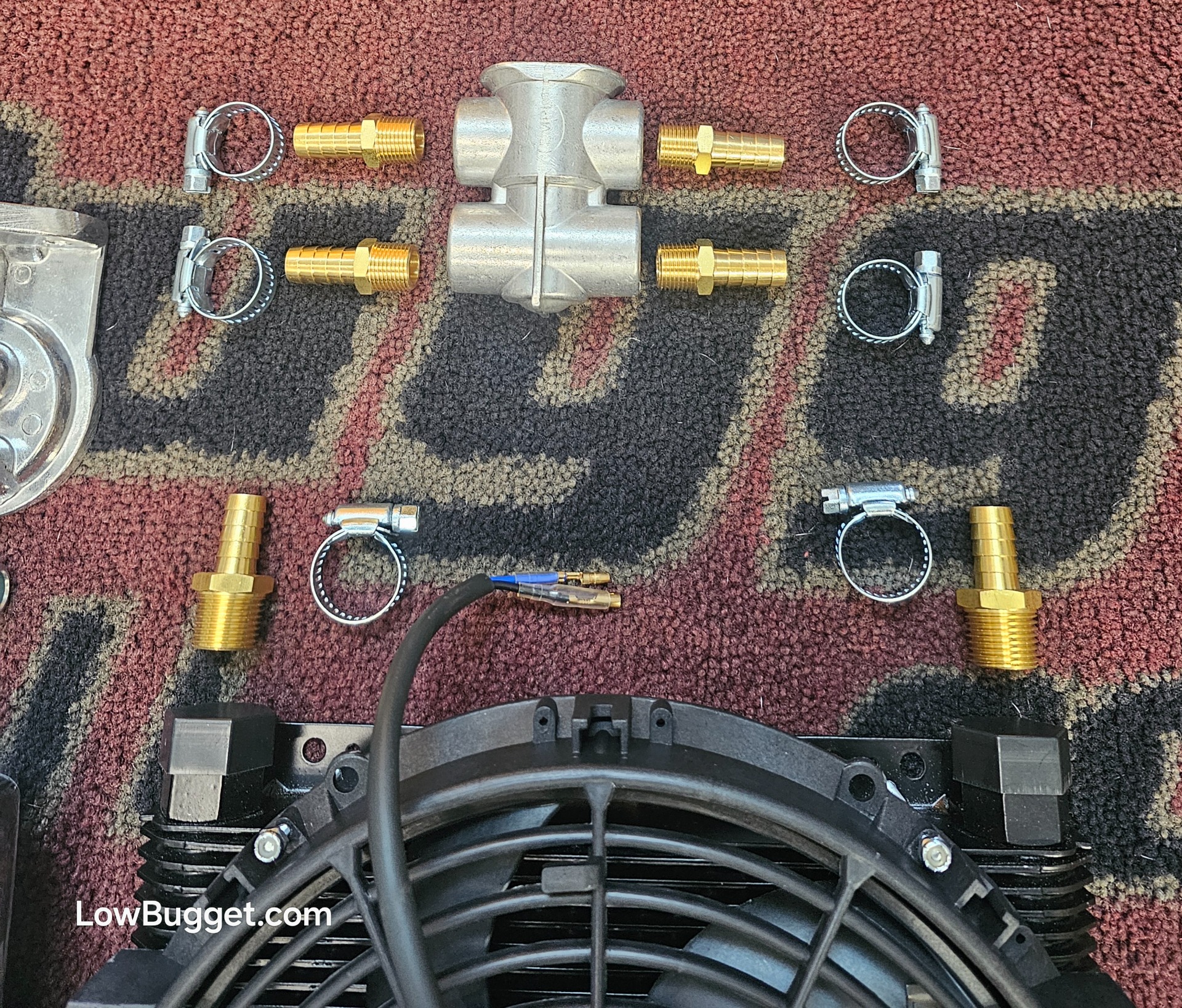

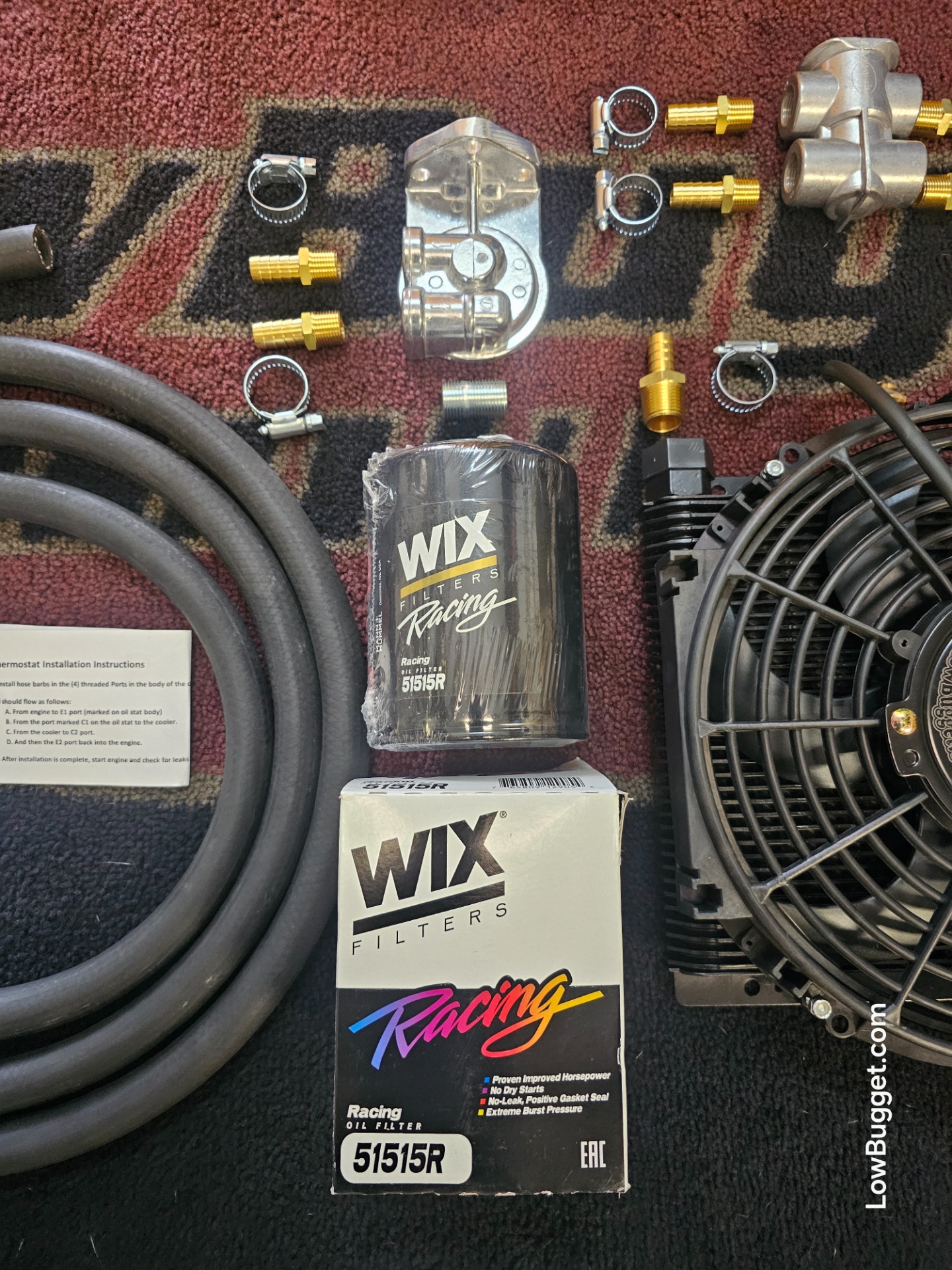

Kit includes:
1x 72 plate aluminum oil cooler with black finish, 10"x 11"x 1. 5/8" with 2x 1/2" NPT ports. Assembled with fan.

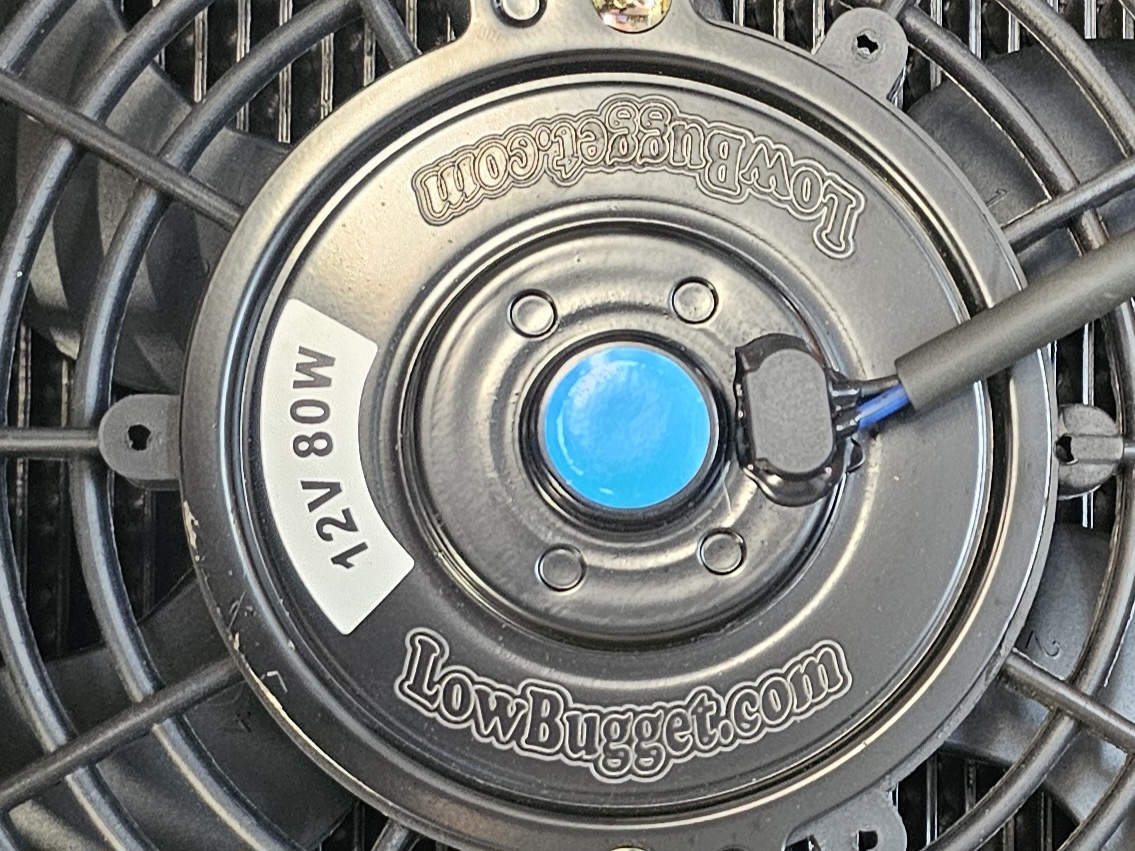

1x Fan 10" "S-Blade", 12 volt 80 watt 6.6amp, Max cfm 1,000
10x feet 1/2" HD oil hose, up to 360* degrees working temperature, double braided 300psi working pressure (1200psi burst)
1x Oil filter mount (left) made of aluminum.
1x Wix Racing oil filter and free sticker!
1x Thermostat that is 90% By-Pass (not sending oil to cooler) and fully open above 175*. This saves your oil cooler from unwanted cold start "thick oil". This will also help your engine get up to temp much faster.
8x 1/2" Hose clamps
6x 3/8" NPT to 1/2" barb brass fitting
2x 1/2" NPT to 1/2" barb brass fitting
110% Tech help! You have questions on how to?
Just ask us!!
714-639-4284
