100% NEW TURNKEY
100% NEW, Not a few new parts.... 100% NEW!!!
All combos are made to order for you!!
This means we make the perfect engine for you and your needs!
You have a lot of options and we have a lot of answers, So give us a call.
Built to last and drive daily "hard"!
Add one of our turbo systems to your order, Click Here

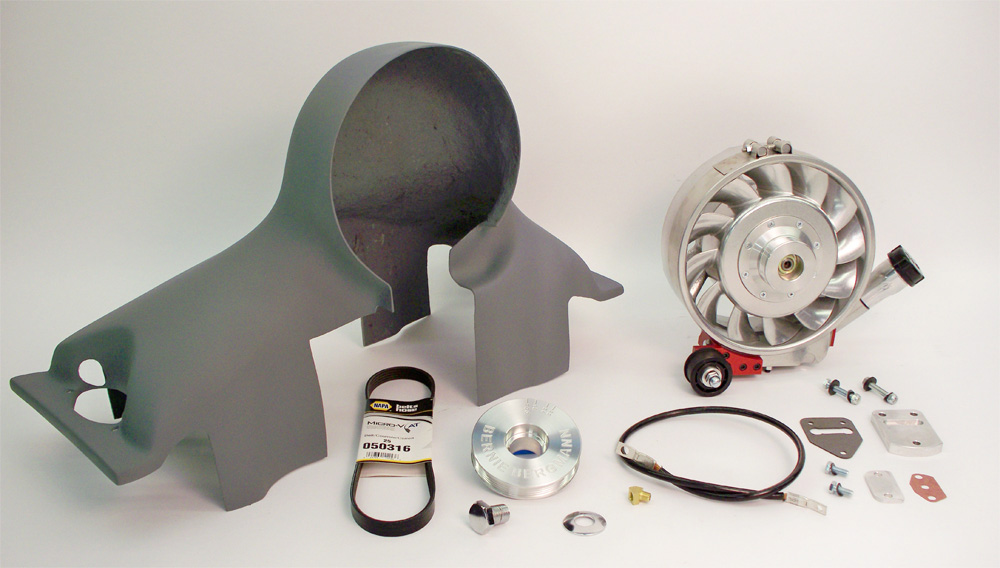

Add a 911 fan shroud to your order! We will fit it, paint it and reinstall all together to give your engine that "WOW" when you open your deck lid! Pick from these High Gloss automotive finishes, Gloss Black, Gloss Red, Gloss Silver or we can leave it primer for you to paint. Click Here for more info.
Add/Replace with Dual 36mm throttle body injection. Click Here
A real good driver. Recommended for local driven Manx, Bug, Ghia, and Thing. Not recommended for VW Baja, Sand rail, Bus, or traveling long distance with elevation changes or hills. Not recommend for use with vehicles needing sustained speeds of 70+mph or higher. For that type of use check out our 2180cc click here.
We start with:
ENGINE CASE- AutoLinea, Standard, Stock Aluminum Engine Case
CRANKSHAFT- Direct Drilled, 69mm Stroke
RODS- OE Specification
CAMSHAFT- Engle 100
LIFTERS- Engle
FLYWHEEL- Stock Style, 4 Dowel Pin, 200mm
GLAND NUT- Chromoly, Heavy Duty
MAIN BEARINGS- Standard, Steel Center
ROD BEARINGS- Mahle
CAM BEARINGS- Standard Thrust
OIL PUMP- Schadek, 26mm with Cover
HEAD STUDS- Chromoly.
PISTONS & CYLINDERS- 85.5mm or 87mm Diameter
PUSHROD TUBES- LowBugget MAX-SEAL tubes.
HEADS- AutoLinea Dual Port Cylinder Head, Spec, Includes: OSVAT O.E. Style 35.55mm Intake and 32mm Exhaust Valves,
3 Angle Valve Job Completed on Precision Rottler Seat & Guide Machine
PUSHRODS- Stock Length, Fully Assembled Hi-Performance Push Rods, 1.45mm (0.057") Wall Thickness
ROCKERS- High Performance, 1.25 Ratio
VALVE COVER- Stock Steel Style, Black or Aluminum clip-on or Bolt-on.
List of external parts on our turnkey engine combos:
Billet pulley, you pick the color. Red, Blue or Black with Crank Trigger Ignition.
Black standard Fan Shroud and Cylinder Covers,
Dog-house oil cooler with Doghouse Fan.
LowBugget.com TwoBarrel fuel Injection system complete with fuel pump, fuel lines and fittings.
Pro-Billet Black Distributor HEI
NGK spark plugs
Fitech Ceramic (Black) performance long lasting wires.
Take your pick on the exhaust, Street Hide-A-way or Offroad.
High out-put 55amp Alternator
Stock genuine Sach pressure plate and HP street disc.
This is a complete motor. Just add oil and your on your way!!
What did one of our 1600cc turnkey engines make on the dyno?
RPM/ HP/ TQ
3000/ 51.41/ 90.01
3500/ 57.47/ 86.25
4000/ 63.76/ 83.75
4500/ 65.33/ 76.25
More options and more info! Give us a call at shop, we like to talk tech!!
714-639-4284 M-F 9-6 and Sat 10-3
