LowBugget.Com MACHINE WORK
Head only machine work click here.
CASE
SPOT FACE CASE
Spot Face all 18 case 13mm washers to use .100" thick 8mm head washers.
(comes w/ washers) Good idea on used and new cases .......$85.00
Cut rear main bearing (bearing only) thrust............... $75 We need your case and your rear bearing.
PUSH RODS
Cut and assemble push rods..............$140
CYLINDER CASE DECK SURFACE
Type I, II, and III....................................................$165.00
CASE BORING 2x STEPS (Cylinder Bores)
Bore for 88, 90, 90.5, 92 and 94mm................$135.00
We will not bore Mag case with 10mm head studs with 14mm inserts for 94mm. Just have us cut the barrels for slip-in.
OIL SEAL (Sand Seal)
Cut Case for Sand Seal..................................$105.00 We need your pulley and seal.
MORE CASE LABOR
Supply our new .100" thick 30% more surface, 6 main stud washers $10 a set of 6.
Straight-Shot, machine and tap case for main galley 3/8"npt. Includes -8 male fitting $135
Other Engine labor
CRANKSHAFT
Press on the cam gear and assemble nose of crank. Prep #2 bearing, cam gear, brass timing gear,racer spacer, clip and slinger install .............$200
Set main bearing thrust end play with the flywheel for you. Torque to 500lbs. Includes shims, must use quality gland nut. Labor + shims $225 If machine of flywheel for more end play is needed add $85
BALANCING ROTATING ASSEMBLY
Balance crank only. (must be disassembled) $105
If not disassembled add $85
Balance crank and flywheel bolted together $185 We need your gland nut.
Balance crank, flywheel, pressure plate and pulley. $235 we need your gland nut, pulley bolt.
Balance crank, flywheel, pressure plate, pulley and match weight 4x rods and match weight the 4x pistons. $345
RODS
Set and check rod bolt stretch $150 we need your torque wrench.
Balance 4x rods $100 big end, little end.
Flywheel
Deck thrust for more end-play $85
Pistons
Balance 4x pistons $105

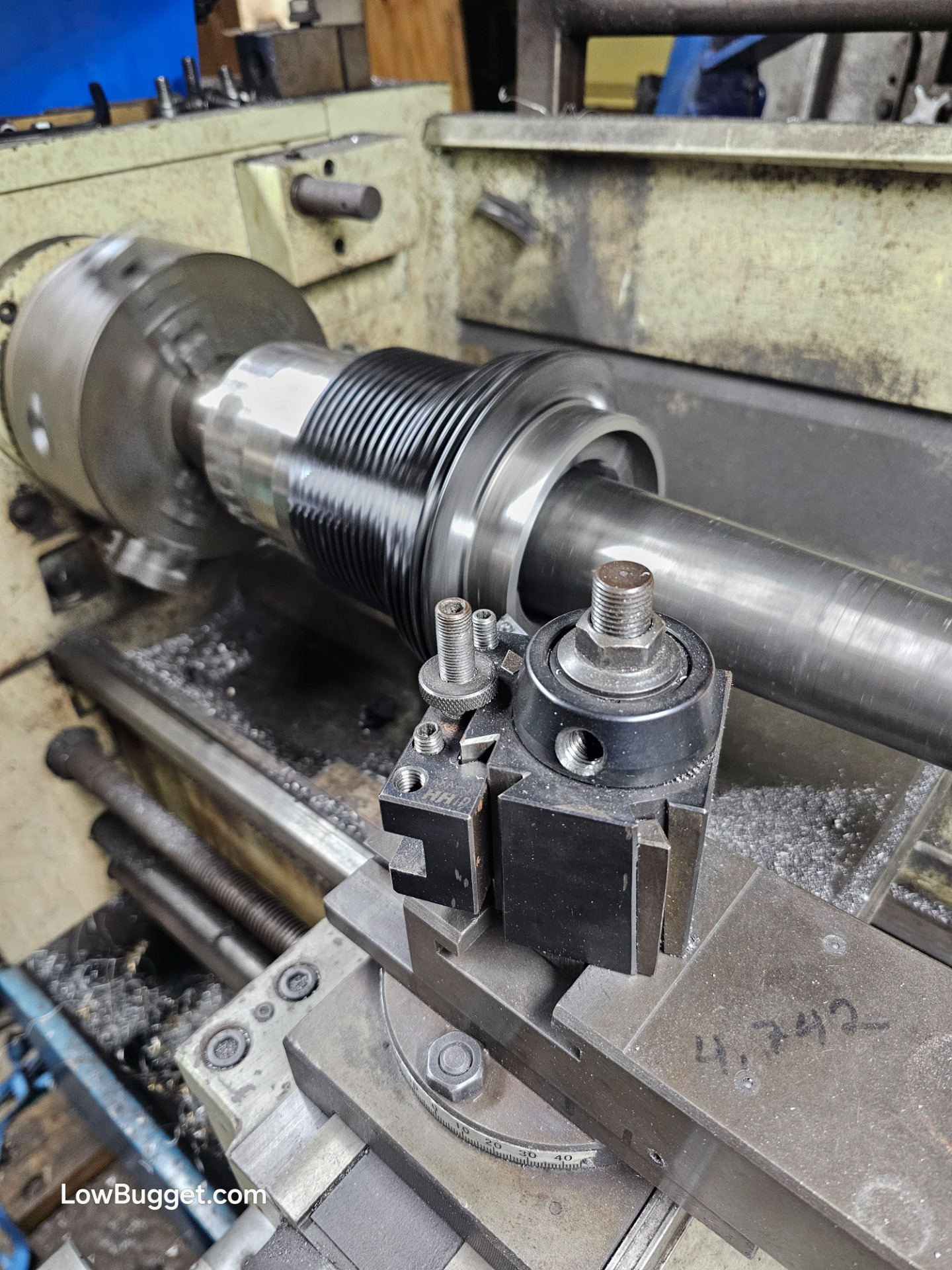

Barrels

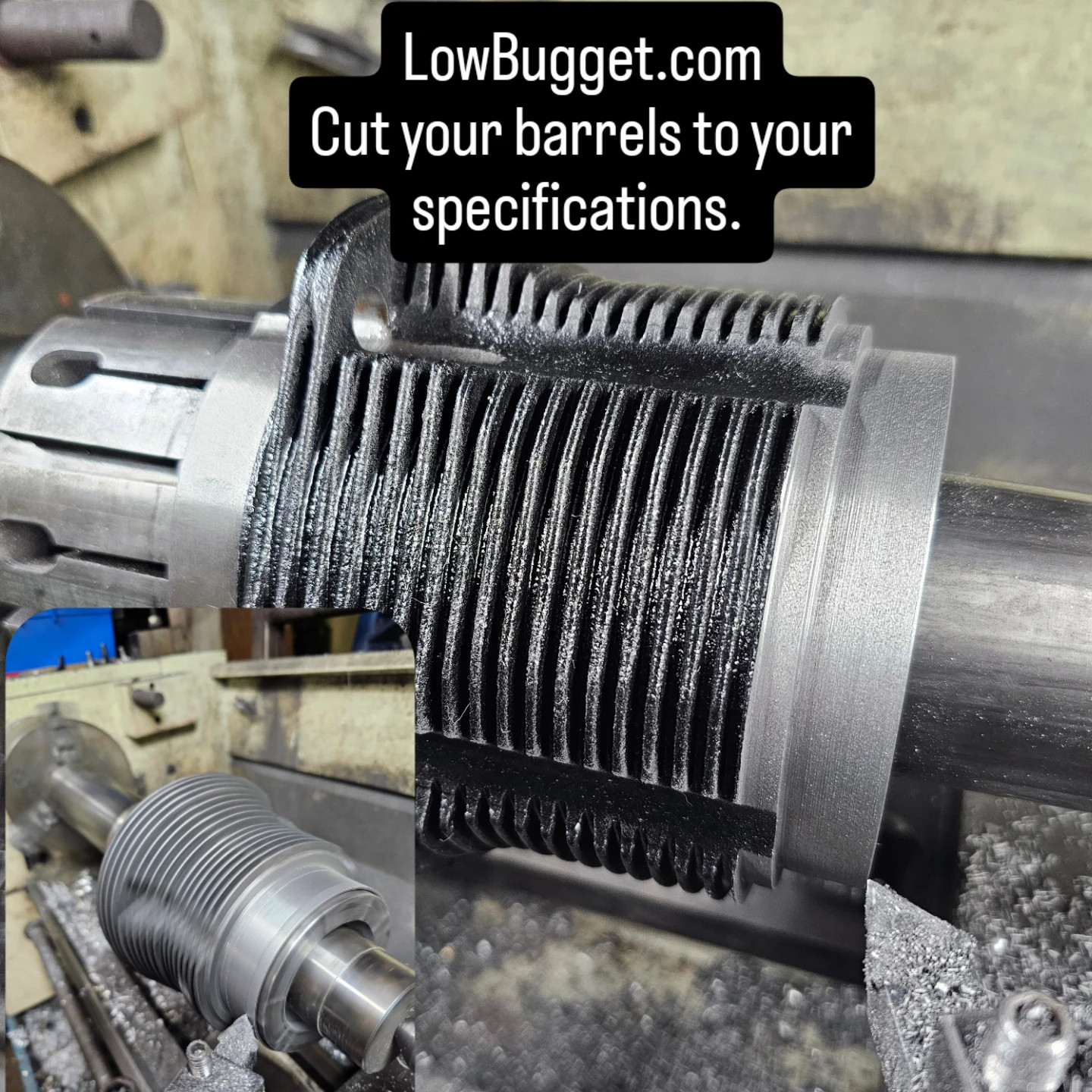

Custom machine bottom of the barrel. Remove from 0.001" to .200" To get the correct deck height! $200
Cut more that .200" off barrel. $300
True-Up barrels. (hone) Machine 4x barrels, Cross-Hatch.......$225
Re-size 4x barrels for use with aftermarket pistons like Wiseco, Icon exc and True-up....$350
Cut barrels for Slip-In (94 into 90.5/92 case bore) $160
Cross-Hatch/Hone 4x barrels (new or used) $100
COATINGS (Black or Polished Ceramic Coating)
Headers $250
Mufflers (each) $185-250
Exhaust turbo pipes, stingers $125-200
turbo exhaust housing $145
Turbo center housing $85 (disassembled. If not disassembled add $275)
Wastegate housing $85 (disassembled. If not disassembled add $165)
OIL PUMP
"O" ring your oil pump $85 (You should do this with aluminum case)
also add Plug outlet port on your pump for full flow use. add $35
Turbo Labor
*Parts and Labor to Carbon-Seal change T25 over to draw through use $295
*Parts and Labor to Carbon-Seal change T3,T3/T4 or T4 (small shaft) over to draw through use $325
*Parts and Labor to change T3,T3/T4 or T4 (large shaft) over to draw through use $405
*Does not include re-balance if needed of your turbo.
Tech help is always.....FREE!!!!!
More info, give us a call!!! 714-639-4284
