Programed 4 Barrel Boosted Fuel Injection
system with Crank Trigger Ignition.
Want to Compare our Kits to Jegs, Summit or Fitech? click here
Check out all the builds on Instagram @lowbugget_vw
Check out this YouTube video using our programed 4-Barrel injection system!
Check out this video of the Ghia system with 911 cooling and our Programed 4-Barrel on YouTube.
Features: (Includes 4 Barrel Manifold)
- Data Logger can keep over 25 logs
- One Button Log on/off feature with Auto off.
- Blow-through or Draw-Through VW Turbo use.
- Built in Nitrous controls.
- Boost and Nitrous timing control.
- Inlet air temp ignition Retard
- Full Ignition timing control with awesome throttle response.
- Ignition start retard.
- Can be upgraded to 2x Port or 4x Port injection and also sequential 4x Port.
- Idle Stability Control (smooths out idle on large pipe or long runner combos, helps prevent stalling)
- Anti-Lag Turbo Control for staging boost building at the line. Pop, pop, pop!!!
- Hidden Crank Trigger ignition signal input Included. (hides behind pulley now)

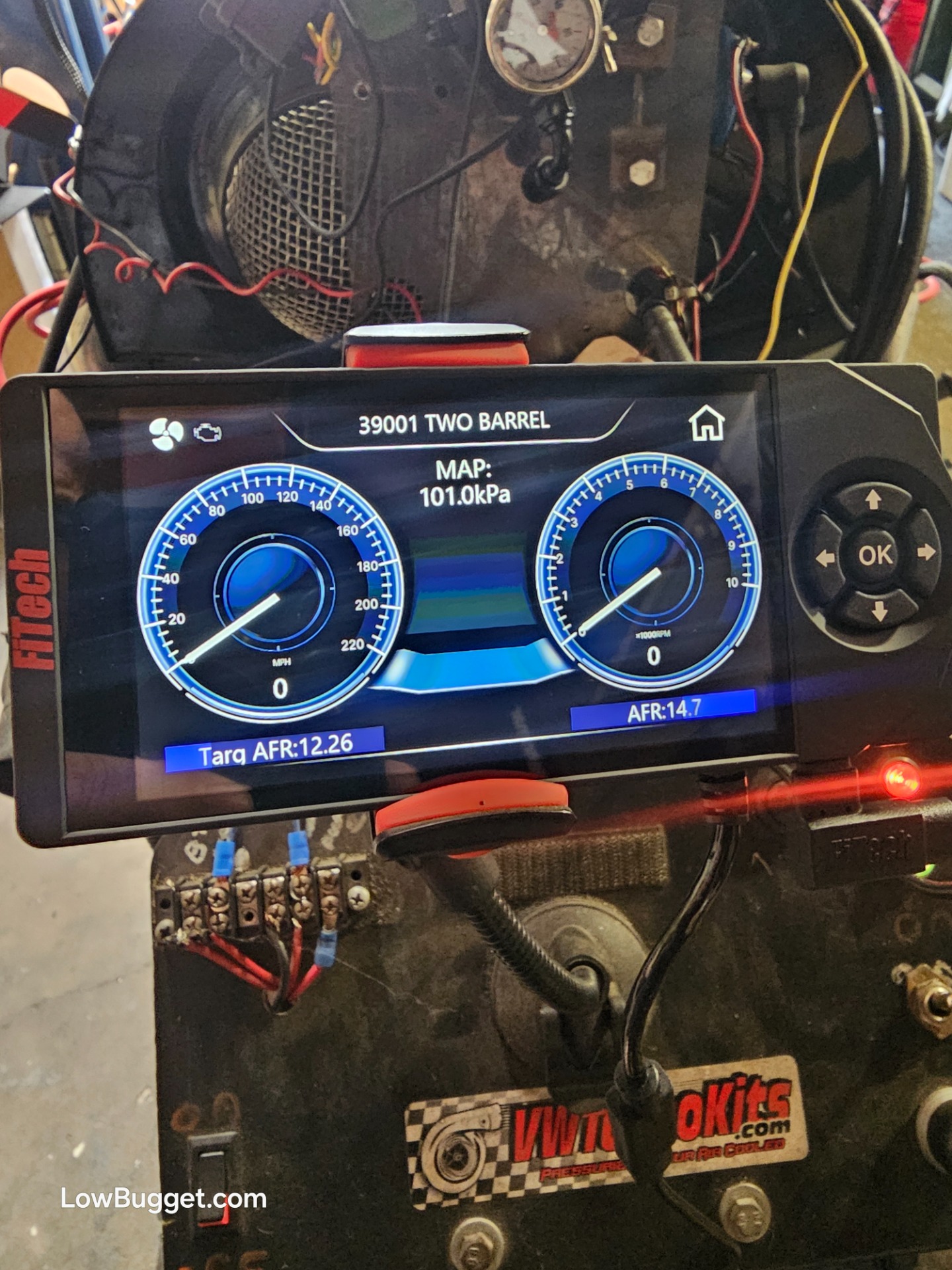

- Hand Held Gauge Displays: Oil temp, Inlet Air Temp, Volts, AFR, Boost, RPM and More.
- 2x Rev-Limiters with adjustable Bounce-Back Soft Touch.
- OBD code readout for all sensors on hand held.
- Real-Time Air/Fuel Ratio display.
- Real-Time Ignition timing display. Basically you can watch your ignition timing from inside the car!
- Pro-tuning laptop software Included but not needed to make adjustments or read logs.
- 2.5 BAR internal MAP sensor.
- Suitable for up to 550hp.
- (4) Flow matched 550hp injectors.
- (2) Fan on/off control with temp adjustments.
- E85 compatible.
- Support for Nitrous.
- Boost and Nitrous timing.
- Full standard Ignition timing control.
- Built-in fuel pressure regulator with 1:1 boosted referenced up to 30psi use.
- Matte black finish.
Kit Contents
- (1) 4 barrel intake manifold with 3" inlet and double drilled flange, can mount in any direction.
- (1) 3" silicone coupler boot and 2x T-Clamps
- VW Programed Throttle body and han held to match your combo and needs.
- (1) Weld-in O2 bung.
- (1) Hand-held controller with Boosted VW program for your combo.
- (1) Oil Temp sensor and mount. (stock fuel pump block-off mount or Type 3 dipstick block-off mount)
- (1) 16 foot or 21 foot Hand-held controller cable.
- (1) Windshield handheld display mount.
- (1) Mini USB cable to read Data Logs.
- (1) 600hp frame-mounted inline fuel pump with mount.
- (1) O2 sensor.
- (5) A.J.Sims Program copy's in handheld.
- (1) Base Gasket.
- (1) High-Flow air cleaner with chrome top.
- (6) -6 Push-Loc AN fittings 1x straight, 2x 45*, 2x90*, 1x180*
- (20) Feet -6 Push-Loc 3/8" e85 safe fuel hose.
- (6) Hose clamps
- (1) Chrome Throttle Cable Mount with 2x return springs.
- (1) Heim-joint throttle linkage adapter.
- (1) Base gasket, air-top gasket
- (1) Relay/fuse box with Fuel pump and Injector Relays externally mounted along with fuses.
- (1) main power/fuel pump power CABLE, (1) coil, key power, fan #1, Tach CABLE (1) Fan #2, NOS input, NOS output, Rev-limitor #2, anti-lag CABLE
- Unlimited Tech Help not in the box but just a phone call away at 714-639-4284
